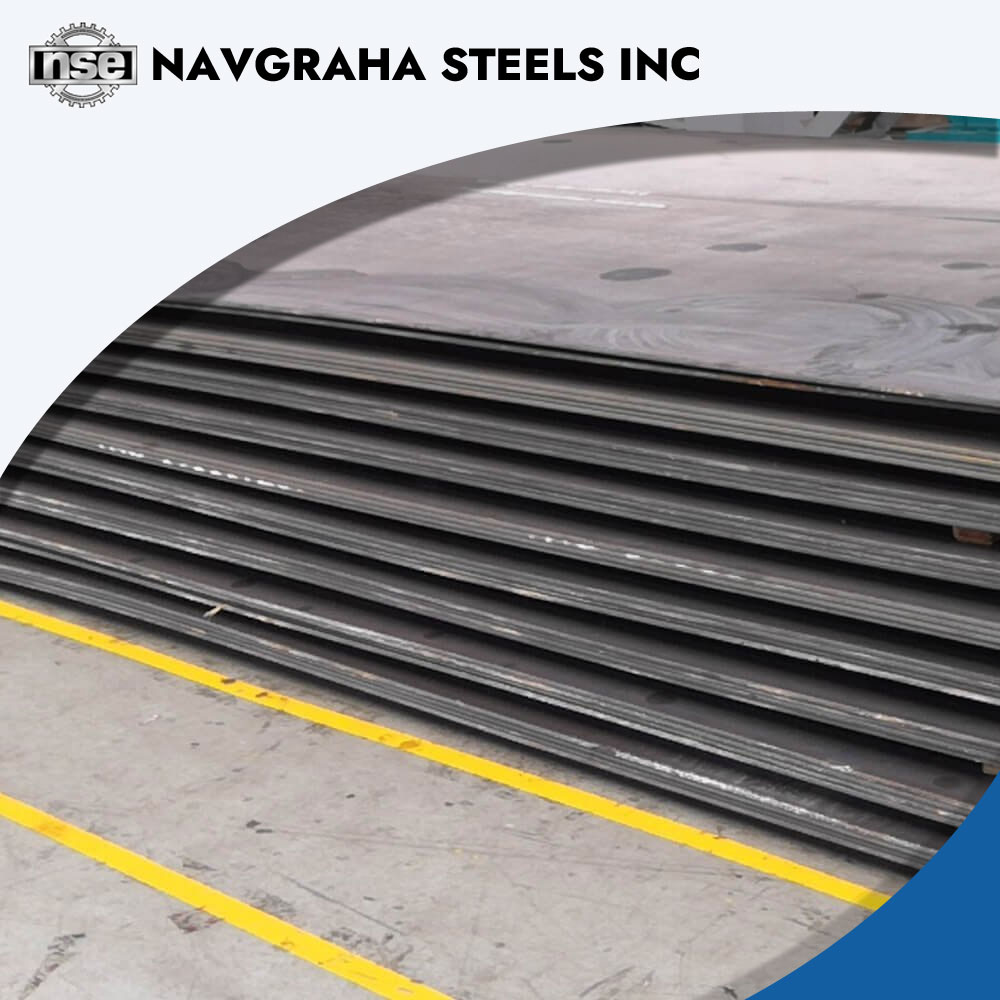

At Navgraha Steels INC, we supply SA 516 Gr 60 Plates, Sheets & Coils for boiler and pressure vessel applications. As a trusted stockist and exporter, we source directly from reputed mills like Sail, AMNS, JSPL, Evonith, Nippon Yakin, Outokumpu, Special Metals, VDM, and ATI. Each order is supported by mill test certificates (MTCs), IBR approvals, and NACE/HIC compliance—giving buyers full confidence in performance and traceability.
SA516 Grade 70 is a carbon steel plate made for boiler and pressure vessel applications.
SA516 Gr 70 is a carbon steel sheet manufactured to ASTM A516 / ASME SA516 standards
SA516 Gr 70 is a carbon steel grade under ASTM A516 / ASME SA516 standards,
SA 516 Gr 60 is a carbon steel plate under ASTM A516 standard, designed for moderate-temperature and high-pressure service. It is widely used in boilers, storage tanks, and pressure vessels where good toughness, weldability, and durability are required.
Compared to Gr 70, SA 516 Gr 60 offers slightly lower tensile strength but remains a cost-effective and reliable option for many industrial applications
for power generation plants
for petroleum, chemicals, and water treatment
for oil refineries and fertilizer plants
for moderate-pressure environments
reactors, separators, and columns
cut-to-size coils and sheets for customized projects
| Property | Value (Typical) | Notes |
|---|---|---|
| Tensile Strength | 415–550 MPa | Moderate strength, reliable for boilers |
| Yield Strength | ≥ 220 MPa | Provides structural stability |
| Elongation | 21–23% | Ensures ductility for forming |
| Impact Tested | -20°C (CVN optional) | For low-temperature service |
These properties make Gr 60 ideal for projects needing toughness with economy.
| Element | Max % |
|---|---|
| Carbon (C) | 0.23 |
| Manganese (Mn) | 0.60–1.20 |
| Phosphorus (P) | 0.035 |
| Sulfur (S) | 0.035 |
| Silicon (Si) | 0.13–0.45 |
Lower carbon content enhances weldability and toughness, a major buyer requirement in fabrication.
SA 516 Gr 60 conforms to ASTM A516 / ASME SA516 standards and is recognized worldwide as a boiler and pressure vessel quality (PVQ) steel.
Equivalent Standards:
Available Brands at Navgraha Steels INC:
This allows procurement managers to choose mill preference based on project approvals and AVL (Approved Vendor List)
We maintain ready stock in multiple dimensions to meet urgent project needs:
Buyers save time and cost with cutting and size customization at our facility.
Navgraha Steels INC ensures buyers receive material that matches project specifications without extra delays.
Buyers benefit from ready-to-fabricate steel that reduces site preparation time
With us, buyers gain trust, traceability, and timely delivery—critical for shutdown projects
These variants help buyers meet AVL, tender, and EPC requirements without procurement risks.
Navgraha Steels INC exports SA 516 Gr 60 Plates, Sheets & Coils to more than 40 countries.
Key Markets:
Packaging Standards:
Buyers get on-time delivery with full export documentation support
Before placing an order, procurement teams should check:
Navgraha Steels INC provides end-to-end consultation so buyers select the right material without delays or compliance risks.
Every consignment comes with:
This ensures traceability, compliance, and global acceptance
Gr 60 has lower tensile strength and is more economical; Gr 70 is stronger for critical projects.
Yes, we stock plates, coils, and sheets from multiple mills.
From 6 mm to 200 mm, with cut-to-size options.
Sail, AMNS, JSPL, Evonith, Nippon Yakin, Outokumpu, Special Metals, VDM, ATI.
Yes, IBR-certified plates are available.
Yes, for oil & gas and refinery applications.
Yes, SGS, BV, Lloyd’s, TÜV inspections are accepted.
Yes, CNC, plasma, waterjet, and oxy-fuel cutting services are available.
7–15 days depending on order size and destination.
Yes, we cater to both small project needs and bulk orders.
Yes, Charpy impact-tested plates at -20°C can be supplied.
Yes, full mechanical and chemical datasheets are shared before order finalization.
Price varies with thickness, certification, and mill origin. Contact us for current rates.
Yes, regular shipments go to UAE, Saudi, Oman, South Africa, Nigeria, and more.
Looking to buy SA 516 Gr 60 Plates, Sheets, or Coils?
With Navgraha Steels INC, you get:
