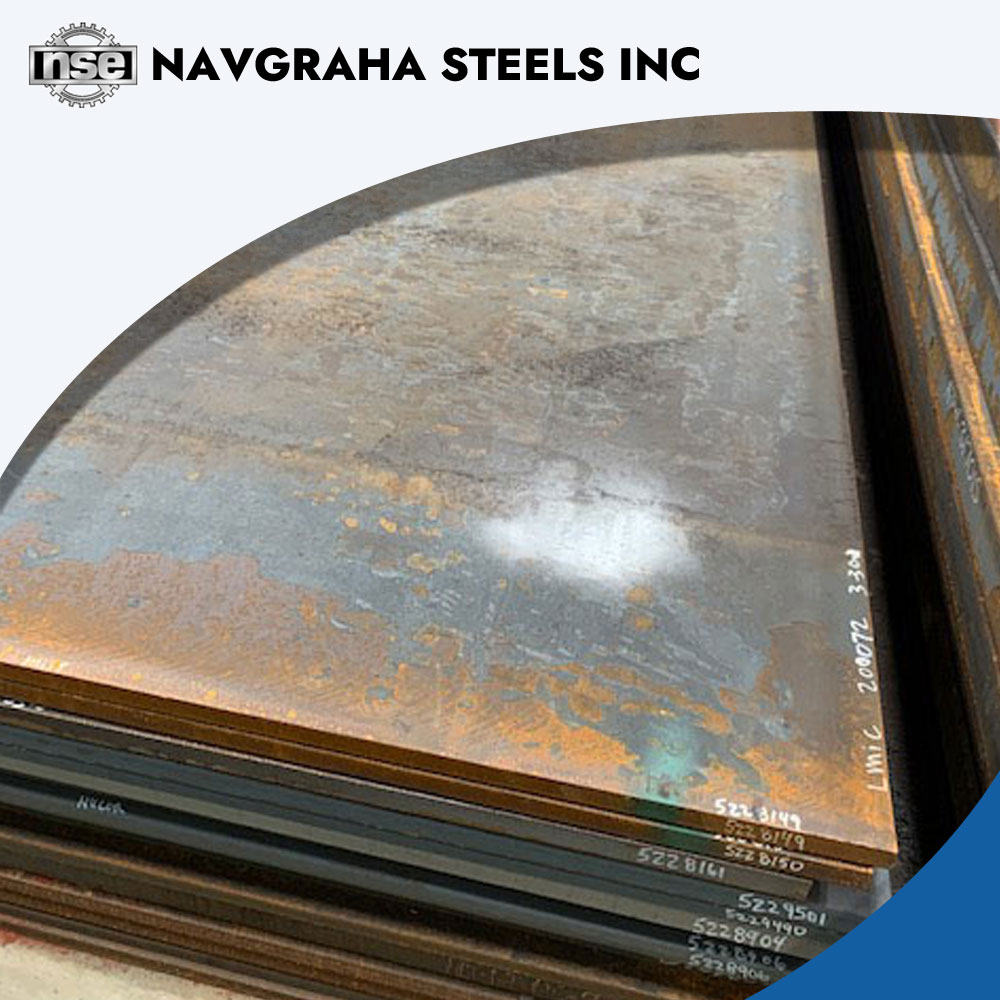

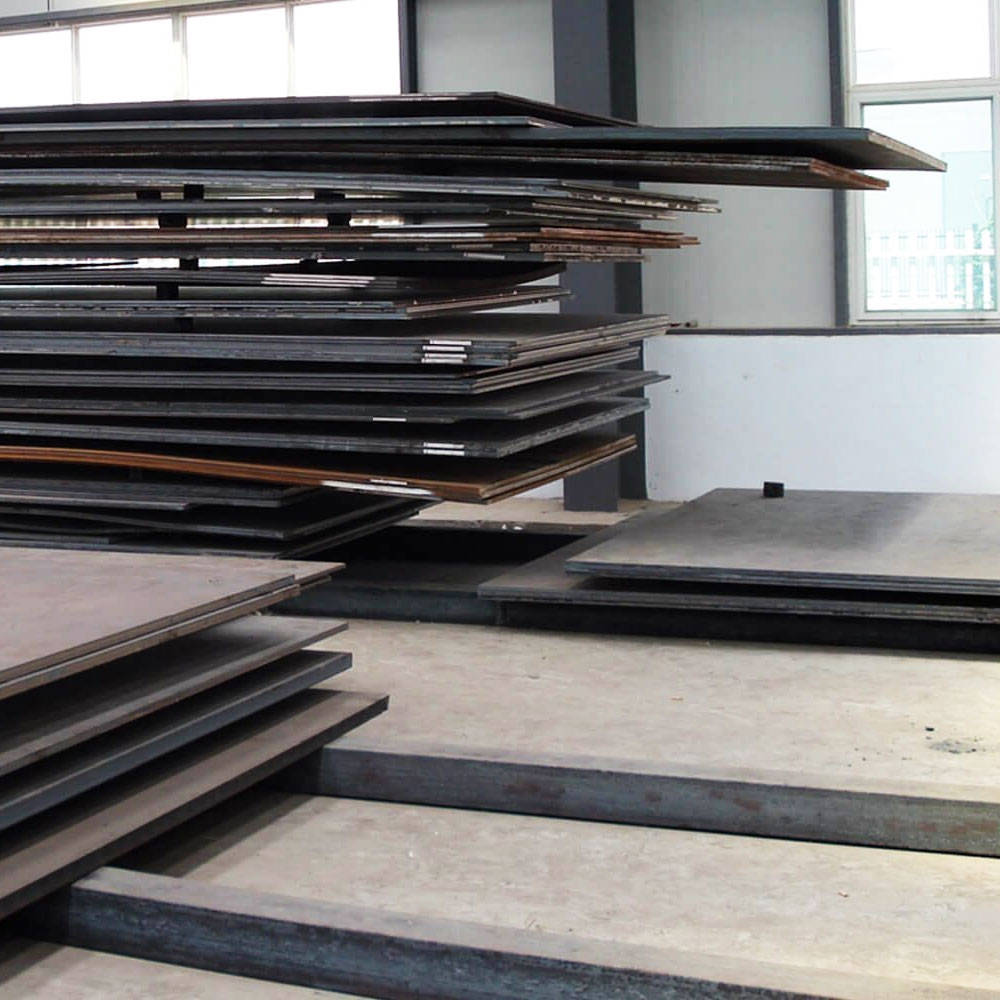

Navgraha Steels INC specializes in supplying SA 516 Gr 70 Plates, Sheets, and Coils for boiler and pressure vessel applications. As one of India’s trusted stockists and exporters, we deliver only mill-certified steel from leading brands like Sail, AMNS, JSPL, Evonith, Nippon Yakin, Outokumpu, Special Metals, VDM, and ATI. Every order is supported with mill test certificates (MTC), IBR approvals, and international standards compliance.
SA516 Grade 70 is a carbon steel plate made for boiler and pressure vessel applications.

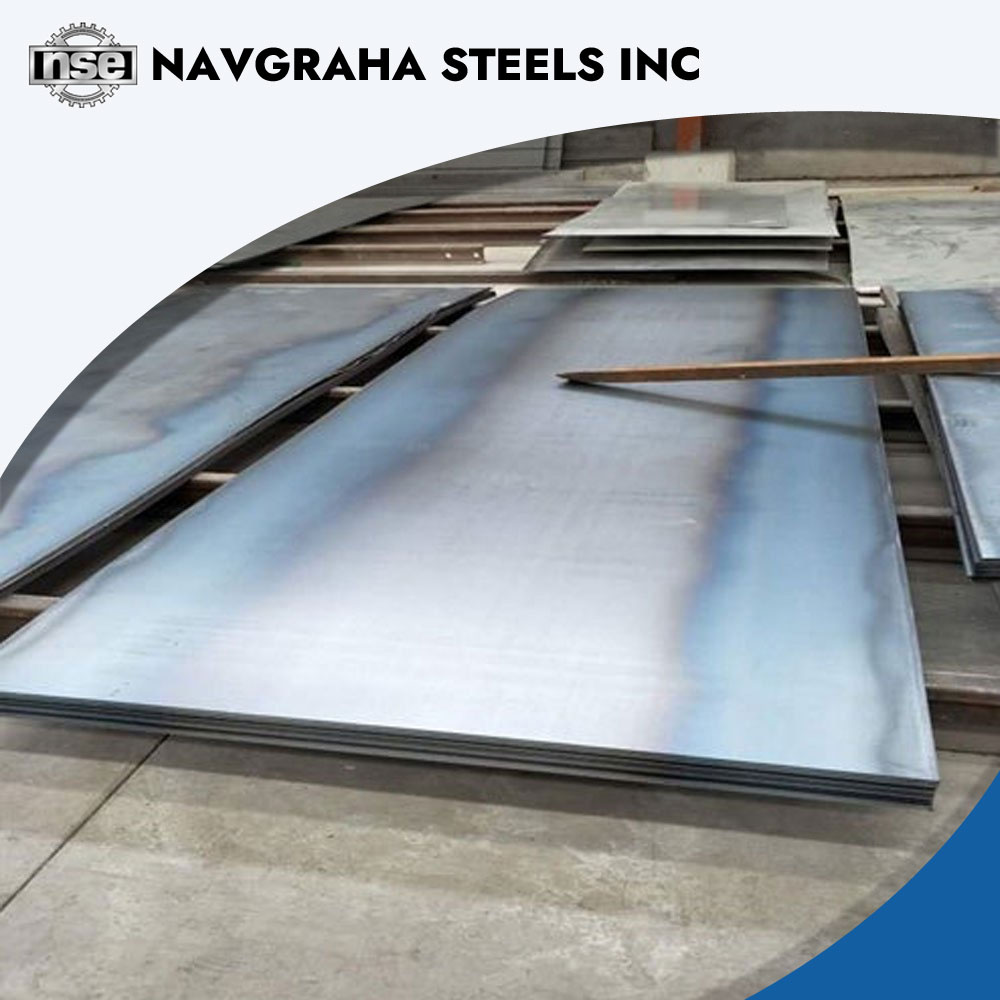

SA516 Gr 70 is a carbon steel sheet manufactured to ASTM A516 / ASME SA516 standards
SA516 Gr 70 is a carbon steel grade under ASTM A516 / ASME SA516 standards,
SA 516 Gr 70 is a carbon steel plate grade under ASTM A516 standard, primarily used in boilers, heat exchangers, and pressure vessels. Known for its high tensile strength, notch toughness, and excellent weldability, this grade ensures reliable performance under high pressure and high-temperature environments.
It is widely recognized as the industry benchmark material for pressure vessel quality (PVQ) plates and is available in plates, sheets, and coils.
for boilers and storage tanks
for pressure vessels and steam lines
for heat exchangers and reactors
for ammonia and urea plants
for boilers and on-board tanks
custom cut-to-size plates and coils
| Property | Value | Notes |
|---|---|---|
| Tensile Strength | 485–620 MPa | Ensures durability under stress |
| Yield Strength | ≥ 260 MPa | Provides structural integrity |
| Elongation | 17–21% | Good ductility |
| Impact Tested | -20°C (Charpy V-Notch) | Optional as per project spec |
This balance of strength, ductility, and toughness makes SA 516 Gr 70 suitable for critical boiler and pressure applications.
| Element | Max % |
|---|---|
| Carbon (C) | 0.27 |
| Manganese (Mn) | 0.79–1.30 |
| Phosphorus (P) | 0.035 |
| Sulfur (S) | 0.035 |
| Silicon (Si) | 0.13–0.45 |
Low carbon + high manganese = excellent weldability + toughness.
SA 516 Gr 70 conforms to ASTM A516 / ASME SA516 specifications.
It is also equivalent to several global standards:
At Navgraha Steels INC, we stock mill-approved plates, sheets & coils from brands:
Sail, AMNS, JSPL, Evonith, Nippon Yakin, Outokumpu, Special Metals, VDM, and ATI.
This allows buyers to source from multiple mill origins under one roof, ensuring availability even for urgent shutdown projects.
We maintain ready stock across multiple dimensions:
Buyers can request cutting, shearing, or CNC profile cutting to reduce wastage and speed up production.
SA 516 Gr 70 plates are available in as-rolled or normalized condition.
By offering ready-to-use normalized & tested plates, we save buyers heat treatment cost and time.
Our in-house fabrication services ensure buyers receive ready-to-fabricate plates, reducing turnaround times for EPC contractors.
With Navgraha Steel, buyers get zero guesswork, assured compliance, and on-time delivery.
These variants help buyers meet exact project specifications without extra processing delays.
Navgraha Steels INC supplies SA 516 Gr 70 Plates, Sheets & Coils to buyers across:
Our logistics team ensures:
Before ordering, buyers should check:
👉 At Navgraha Steels INC, we guide buyers through material selection, certification, and dispatch planning—removing risks from procurement.
Every plate, sheet, and coil comes with:
This ensures complete traceability and buyer confidence.
Gr 70 has higher tensile and yield strength, making it more suitable for critical applications.
Yes, we supply IBR-approved plates for boiler and pressure vessel applications.
From 6 mm up to 300 mm, with widths up to 3500 mm and lengths up to 12,000 mm.

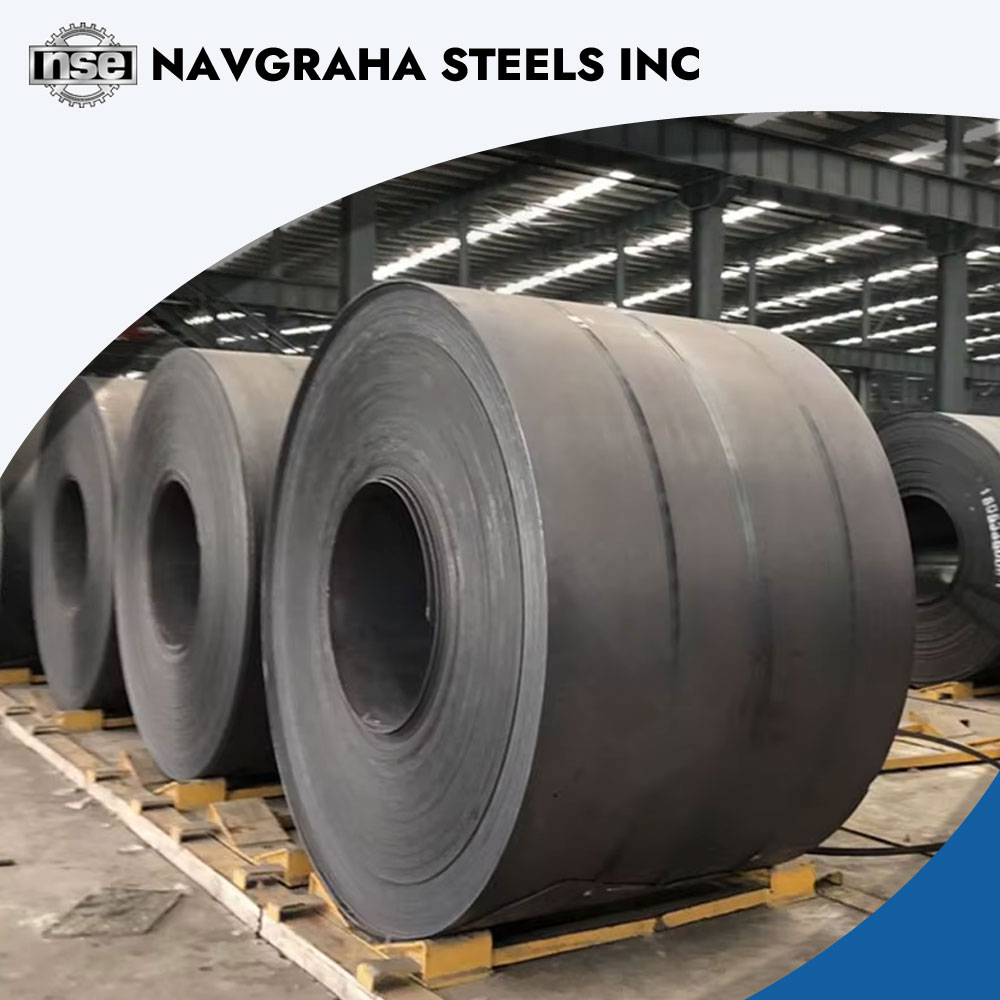

Yes, along with plates, we stock coils and sheets from reputed mills.
Sail, AMNS, JSPL, Evonith, Nippon Yakin, Outokumpu, Special Metals, VDM, ATI.
Yes, we supply NACE MR0175 & HIC tested plates for sour service.
Yes, its low carbon content ensures excellent weldability.
Yes, we offer CNC cutting, water jet cutting, and shearing services.
EN 10204 3.1/3.2 MTC, IBR approval, NACE, HIC, Charpy test reports.
Yes, we export to UAE, Saudi Arabia, Oman, Qatar, and more.
Ready stock is available for immediate dispatch within India and export orders within 7–15 days.
Prices vary based on size, thickness, and certification. Contact us for the latest quotation.
Yes, SGS, BV, Lloyds, TUV, and other third-party inspections are accepted.
We cater to both small project requirements and large bulk orders.
Looking for SA 516 Gr 70 Plates, Sheets, or Coils?
✅ Share your requirements (size, thickness, certification, delivery location) and get:
